Angular Diameter

Last modified by
on
Jul 24, 2020, 6:28:07 PM
Created by
on
Jun 19, 2014, 9:22:44 AM
=Δ
Actual Diameter
Diameter
Tags
UUID
450250f3-f793-11e3-b7aa-bc764e2038f2

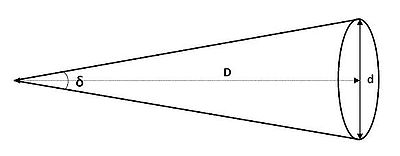

The angular diameter of a circle whose plane is normal the displacement vector between the point of view and the centre of said circle can be calculated using the formula:

δ = 2 arctan(2d/D)

δ = angular diameter

D = actual diameter of and the distance to the object

d = diameter

/attachments/450250f3-f793-11e3-b7aa-bc764e2038f2/AngularDiameter-illustration.png
